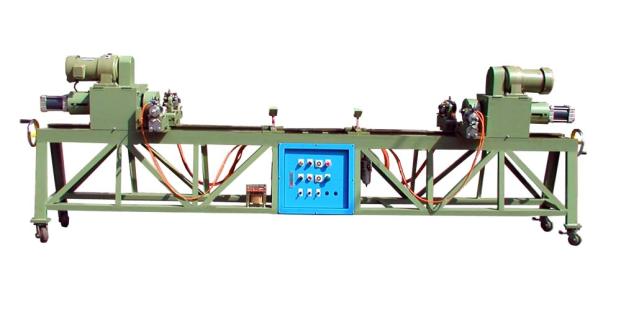

YT-852-C
|
|
雙頭紙管切管機 |
PAPER CORE RE-CUTTER |
|
|
|
基 本 規 格 BASIC SPECIFICATIONS |
|||
|
適用紙管內徑 |
APPLICABLE I.D. |
: |
75~150 mm |
|
適用紙管厚度 |
APPLICABLE THICKNESS
|
: |
5~15 mm |
|
適用紙管長度 |
APPLICABLE RAW TUBE LENGTH |
: |
500~3,600 mm |
|
主軸馬達 |
CUTTING SHAFT MOTOR |
: |
2HP x 2 |
|
切刀 |
CUTTING KNIFE |
: |
4 sets |
|
產量 |
PRODUCTION SPEED |
: |
3~6 cycles/min |
|
操作界面 |
OPERATING INTERFACE |
: |
TRADITIONAL
CONTROL BUTTONS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
