YT-CD-3
|
|

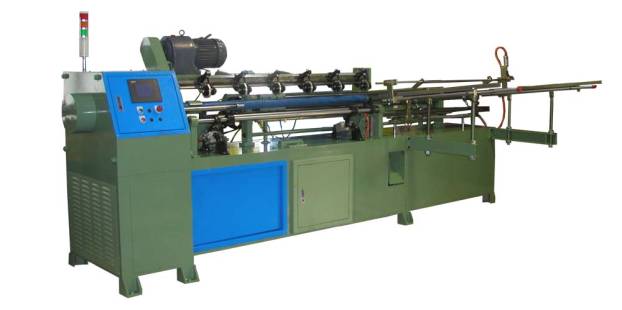

DTY紙管切管機 |
DTY PAPER TUBE RE-CUTTER |
|
|
|
基 本 規 格 BASIC SPECIFICATIONS |
|||
|
適用紙管內徑 |
APPLICABLE I.D. |
: |
56~69 mm |
|
適用紙管厚度 |
APPLICABLE
THICKNESS |
: |
3~5 mm |
|
適用母管長度 |
APPLICABLE RAW
TUBE LENGTH |
: |
1,550 mm |
|
紙管切斷長度 |
APPLICABLE
CUTTING LENGTH |
: |
Min.110 mm |
|
主軸馬達 |
CUTTING SHAFT
MOTOR |
: |
2HP x 1 |
|
切刀馬達 |
CUTTING MOTOR |
: |
3HP x 1 |
|
切刀 |
CUTTING KNIFE |
: |
6 sets |
|
進退料 |
LOAD/UNLOAD |
: |
MITSUBISHI
SERVOMOTOR x 1 |
|
產量 |
PRODUCTION
SPEED |
: |
6~12 cycles/min |
|
操作界面 |
OPERATING
INTERFACE |
: |
人機界面 TOUCH PANEL (HMI) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
