YT-CN-5
|
|
手動紙管切管機 |

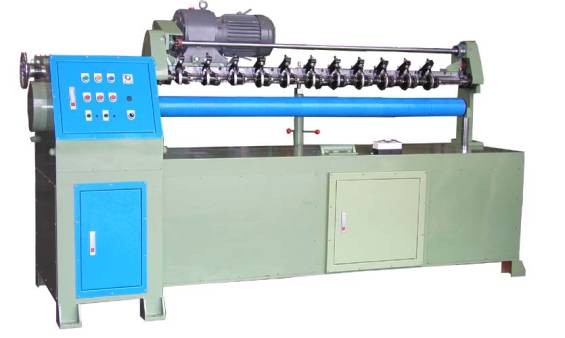

MANUAL PAPER TUBE RE-CUTTER |
|
|
|
基 本 規 格 BASIC SPECIFICATIONS |
|||
|
適用紙管內徑 |
APPLICABLE I.D. |
: |
94~125mm |
|
適用紙管厚度 |
APPLICABLE
THICKNESS |
: |
Max. 10mm |
|
適用紙管長度 |
APPLICABLE RAW TUBE LENGTH
|
: |
1,650 mm |
|
紙管切斷長度 |
APPLICABLE
CUTTING LENGTH |
: |
Min.110 mm |
|
主軸馬達 |
CUTTING SHAFT
MOTOR |
: |
2HP |
|
切刀馬達 |
CUTTING MOTOR |
: |
5HP |
|
切刀 |
CUTTING KNIFE |
: |
11 SETS |
|
操作界面 |
OPERATING
INTERFACE |
: |
TRADITIONAL
CONTROL BUTTONS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
