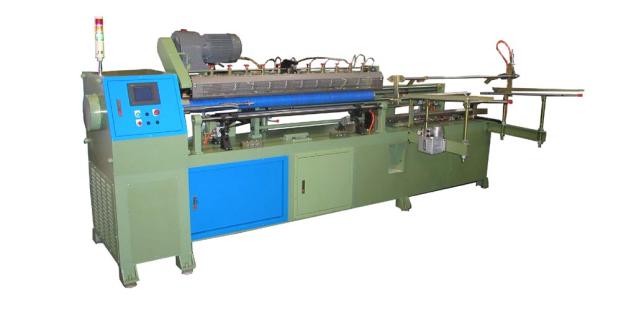

YT-CP-5J
|
|
POY紙管切管機 (專利可調式刀套) |
POY PAPER TUBE RE-CUTTER (PATENTED ADJUSTABLE SPACERS) |
|
|
|
基 本 規 格 BASIC SPECIFICATIONS |
|||
|
適用紙管內徑 |
APPLICABLE
I.D. |
: |
75~125
mm |
|
適用紙管厚度 |
APPLICABLE THICKNESS |
: |
5~12
mm, Max. O.D. 140 mm |
|
適用紙管長度 |
APPLICABLE
RAW TUBE LENGTH |
: |
1,650
mm |
|
紙管切斷長度 |
APPLICABLE
CUTTING LENGTH |
: |
(Discussion
required) |
|
主軸馬達 |
CUTTING
SHAFT MOTOR |
: |
2HP
x 1 |
|
切刀馬達 |
CUTTING
MOTOR |
: |
5HP
x 1 |
|
切刀 |
CUTTING
KNIFE MODULE |
: |
(Discussion
required) |
|
進退料 |
LOAD/UNLOAD |
: |
MITSUBISHI
SERVOMOTOR x 1 |
|
產量 |
PRODUCTION
SPEED |
: |
3~6
cycles/min |
|
操作界面 |
OPERATING
INTERFACE |
: |
人機界面 TOUCH PANEL
(HMI) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
