YT-FP2-O-PA-B11-GS2N22
|
|
POY / FDY 紙管整修機 |

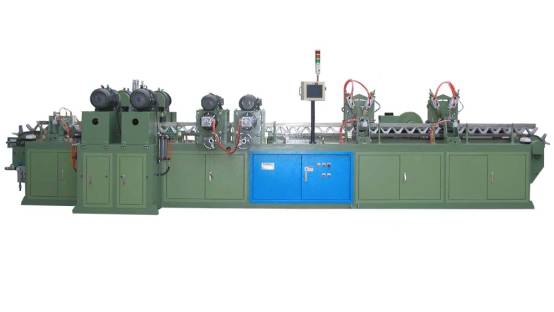

POY / FDY PAPER TUBE FINISHING MACHINE |
|
|
|
基 本 規 格 BASIC SPECIFICATIONS |
|||
|
適用紙管內徑 |
APPLICABLE I.D. |
: |
75~125 mm |
|
適用紙管厚度 |
APPLICABLE
THICKNESS |
: |
5~15 mm |
|
最大外徑 |
MAX O.D. |
: |
140 mm |
|
適用紙管長度 |
APPLICABLE
LENGTH |
: |
75~230 mm |
|
產量 |
PRODUCTION
SPEED |
: |
35~45 pcs/min
(double-move mode, w/o z-notching) |
|
輸送鏈條 |
CHAIN CONVEYOR |
: |
由伺服馬達帶動Driven by servomotor |
|
|
|
: |
可切換走單雙支Single or double-move switchable |
|
操作界面 |
OPERATING
INTERFACE |
: |
人機界面 Touch panel (HMI) |
|
工 作 站 WORK STATIONS
|
|||
|
上油 |
OILING
|
: |
1 set |
|
磨頭 |
EDGE POLISHING |
: |
2 sets, 5 HP x
4 |
|
拋光 |
EDGE BUFFING |
: |
2 sets |
|
切溝 |
GROOVE CUTTING |
: |
2 sets, 由1只伺服馬達驅動Driven by 1 servomotor |
|
打點盤 |
Z-NOTCHING
MODULE |
: |
2 sets, (2 + 2)
cylinders |
|
|
|
|
|
|
|
|
|
|
